8 Neuron Interface

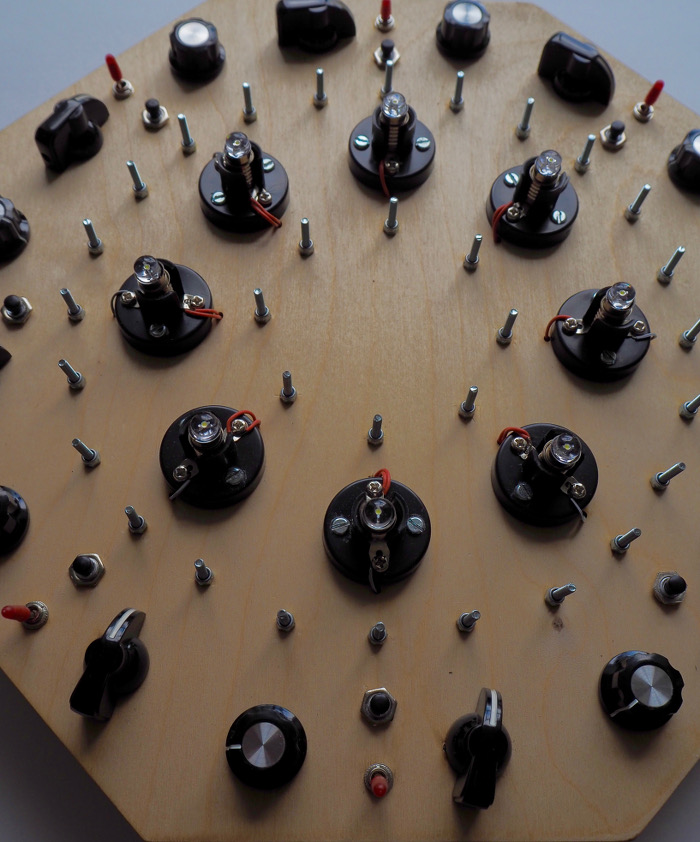

This is a physical interface for an 8 Neuron system.  The lamps reflect each neuron's activation level while the control knobs adjust the neurons firing threshold and base excitation level.  The red switch toggles the neuron's output effect between excitation and inhibition, and the push button stimulates the neuron.

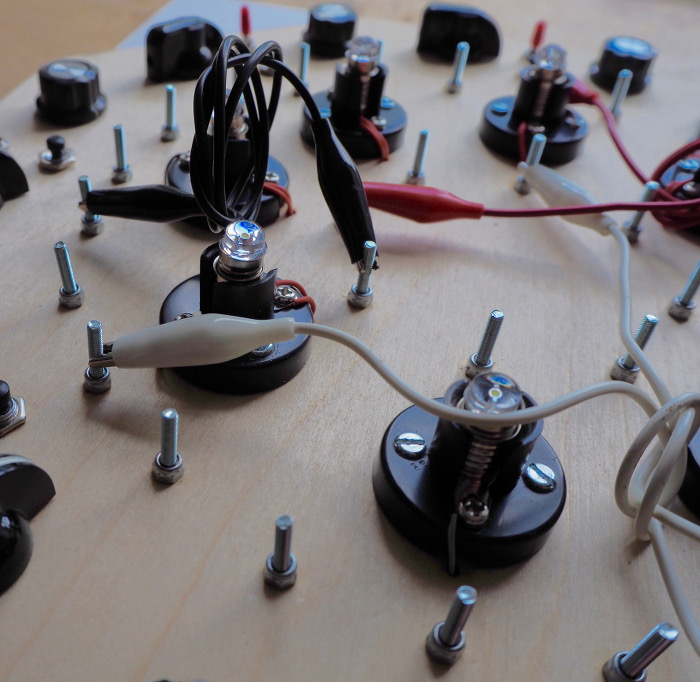

You connect neurons using croc-clips.  Each neuron output can connect to 3 different neuronal inputs, while a neuron's input can receive input from any number of neurons.  This technical restriction will dissappear in subsequent versions.
